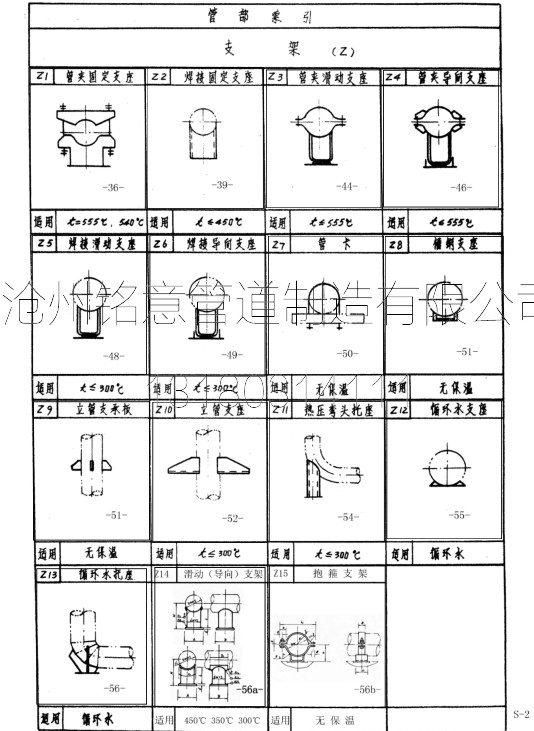

Z4管夹导向支座

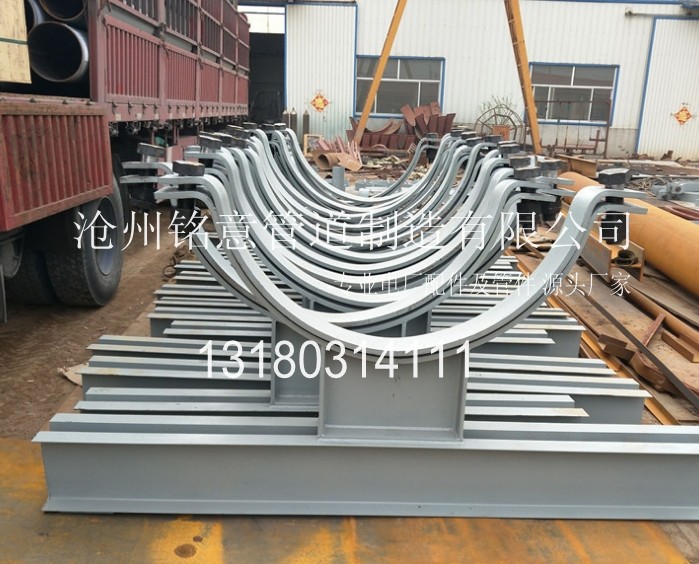

管夹导向支座_Z4管夹导向支座，由管夹×2、支座×1，PTFE（聚四氟乙烯）板×1，滑动底板×1，以及螺栓螺母组合而成，主要工艺为弯制和焊接。沧州铭意管道制造有限公司生产的管夹导向支座的主体和管夹滑动支座比较相似，管夹部分多了8块加强筋，支座部分相同，导向底板两侧焊有导向立板和加强筋，另外，聚四氟乙烯板的尺寸与管夹滑动支座不同。使用时需注意：当支座放于支墩或钢结构支架上，支座的滑动底板与根部之间如需用垫铁调整高度时，应将滑动底板垫紧找平，垫铁与根部及垫铁与滑动底板之间均应焊牢。在焊接时，应将滑动板（聚四氟乙烯板）暂时取掉，待焊完后才垫入。

Z4管夹导向支座材质，铭意管道提醒您，≤300°C时，选用材质为Q235B，材料代号S；≤450°C时，选用材质为钢20，材料代号R；≤555°C时，选用材料为12Cr1MoV，材料代号H。

Z4管夹导向支座的型号：

Z4.57R/S/H，Z4.76R/S/H，Z4.89R/S/H，Z4.108R/S/H，Z4.133R/S/H，Z4.159R/S/H，Z4.168R/S/H，Z4.194R/S/H，Z4.219R/S/H，Z4.245R/S/H，Z4.273R/S/H，Z4.298R/S/H，Z4.325R/S/H，Z4.355R/S/H，Z4.377R/S/H，Z4.406R/S/H，Z4.426R/S/H，Z4.457R/S/H，Z4.480R/S/H，Z4.508R/S/H，Z4.530R/S/H，Z4.558R/S/H，Z4.630R/S/H，Z4.720R/S/H，Z4.820R/S/H。

The guide pipe clamp support by pipe clamp support * 2, * 1, PTFE * 1 (PTFE) plate, sliding plate * 1, and bolt and nut combination, the main process for bending and welding. The main bearing and the guide pipe clamp pipe clamp sliding bearings are similar, some more than 8 pipe clamp block reinforcement, bearing part of the same orientation, both sides of the bottom plate welded with a vertical guiding plate and stiffeners, in addition, the Teflon plate size and different tube clamp sliding bearings. Note: when using support0n the piers or steel structure bracket, between the sliding plate and root bearing such as the need to adjust the height of iron pad when the sliding plate pad should be tight leveling between iron pad and root and iron pad and sliding plate shall be welded in welding, should be a sliding plate (PTFE) temporarily removed, to be welded after0nly pad.
Less than or equal to 300 DEG C, the material is Q235B, material code S; less than 450 DEG C, the material is 20 steel, material code R; less than or equal to 555 DEG C, the selection of materials for 12Cr1MoV, material code H.
