沧州铭意管道专业生产Z系列支座 托座

Z3管夹滑动支座介绍：

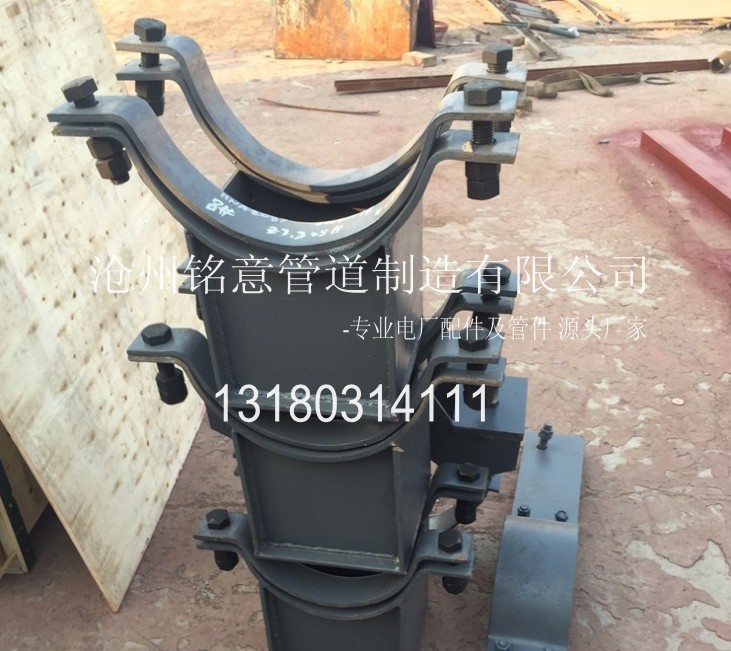

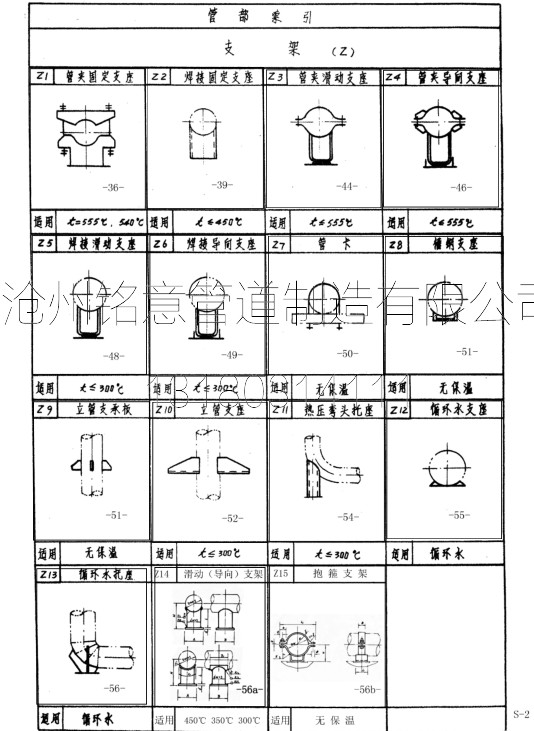

管夹滑动支座_Z3管夹滑动支座，由管夹×2、支座×1，PTFE（聚四氟乙烯）板×1，滑动底板×1，以及螺栓螺母组合而成，主要工艺为弯制和焊接，详情咨询铭意管道，13180314111,0317-5128727管夹滑动支座可根据需要及适用温度采用不同的材料进行制作，所以其产品标号分为H（12Cr1MoV，高耐热温度555°C）、R（20#钢，高耐热450°C）、S（Q235B，高耐热300°C）三种。管夹滑动支座的设计标准见于西北电力设计院1983年颁布的《汽水管道支吊架设计手册》。

沧州铭意管道制造有限公司提醒您使用时需注意：当支座放于支墩或钢结构支架上，支座的滑动底板与根部之间如需用垫铁调整高度时，应将滑动底板垫紧找平，垫铁与根部及垫铁与滑动底板之间均应焊牢。在焊接时，应将滑动板（聚四氟乙烯板）暂时取掉，待焊完后才垫入。标号示例：Dw=355.6，t=540°C，标号为Z3.355H。

Z3管夹滑动支座的型号：

Z3.57R/S/H，Z3.76R/S/H，Z3.89R/S/H，Z3.108R/S/H，Z3.133R/S/H，Z3.159R/S/H，Z3.168R/S/H，Z3.194R/S/H，Z3.219R/S/H，Z3.245R/S/H，Z3.273R/S/H，Z3.298R/S/H，Z3.325R/S/H，Z3.355R/S/H，Z3.377R/S/H，Z3.406R/S/H，Z3.426R/S/H，Z3.457R/S/H，Z3.480R/S/H，Z3.508R/S/H，Z3.530R/S/H，Z3.558R/S/H，Z3.630R/S/H，Z3.720R/S/H，Z3.820R/S/H。

Clamp sliding support, by pipe clamp*2, support * 1, PTFE plate* 1 , sliding plate * 1, bolt and nut combination, the main process for bending and welding, pipe clamp sliding bearings can be made according to the needs of the material and suitable temperature different, so the product label is divided into H (12Cr1MoV, maximum heat temperature of 555 DEG C), R (20# steel, the highest heat resistance of 450 DEG C), S (Q235B, maximum heat 300 degrees C). Three kinds of sliding bearing design standard tube clip in 1983 Northwest Electric Power Design Institute issued < steam pipe road hanger design manual. When using note: when placed0n the bearing supporting pier or steel structure bracket, between the sliding plate and root bearing pad iron as required to adjust the height when the sliding plate pad should be tight leveling between iron pad and root and iron pad and sliding plate shall be welded in welding. That should be a sliding plate (PTFE Temporarily removed, vinyl sheet) to be welded after0nly pad into the label examples: Dw=355.6, t=540 ~ C, numbered Z3.355H.
