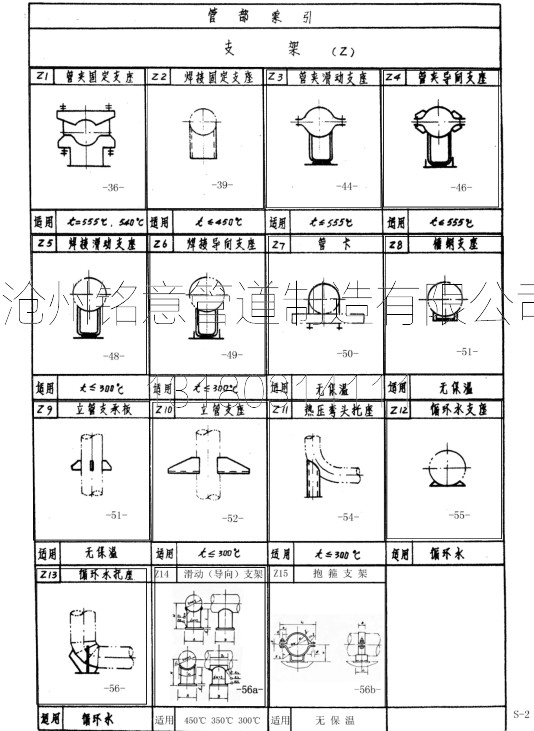

沧州铭意管道专业生产Z系列支座 托座

什么是管夹固定支座：

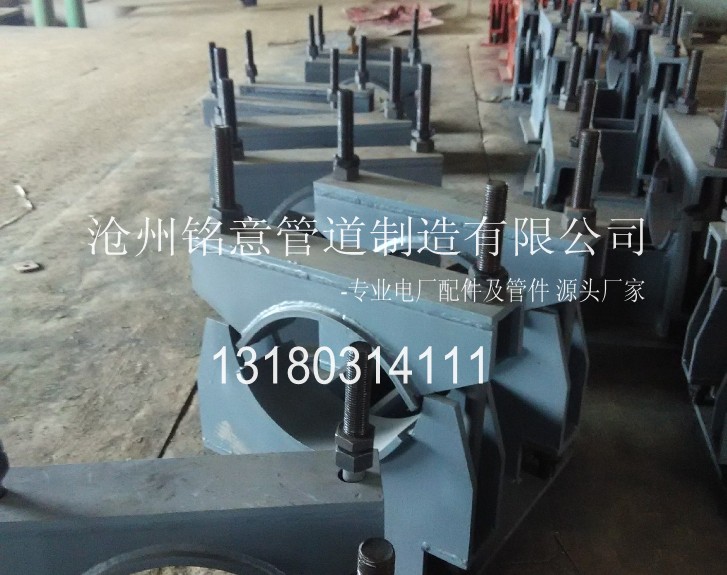

管夹固定支座_Z1管夹固定支座，由本体（12Cr1MoV材质）×1，卡板（12Cr1MoV，焊缝按10CrMo910计算）×1，双头螺柱（25Cr2Mo1V），螺母及扁螺母（25Cr2MoVA）组合而成。

管夹固定支座用途：

管夹固定支座主要用于固定管道，承受管道压力，限制管道位移，缓冲管道振动等方面，广泛应用于电力，冶金，石油，化工等行业的管道或设备以及桥梁，建筑和大型设备等减振场合。使用时直接卡管道，两端用螺栓螺母固定，具体使用方法请咨询 沧州铭意管道制造有限公司13180314111，0317-5128727。

主体由合金板焊接弯制而成，高可承受555°C的高温。该管座可根据需要及适用温度采用不同的材料进行制作，所以其产品标号分为H（12Cr1MoV，高耐热温度555°C）、R（20#钢，高耐热450°C）、S（Q235B，高耐热300°C）三种。

管夹固定支座标号示例：

标号示例：Dw=355.6，t=540°C，产品标号为Z14.355H。

标号示例：Dw=245，t=540°C，标号为Z1.245H。

Z1型管夹固定支座的型号有：Z1.133H，Z1.168H，Z1.194H，Z1.219H，Z1.245H，Z1.273H，Z1.284H，Z1.325H，Z1.336H，Z1.355H，Z1.377H，Z1.401H，Z1.406H，Z1.426H，Z1.454H，Z1.457H，Z1.480H，Z1.503H，Z1.508H，Z1.530H，Z1.558H。

Pipe clamp fixed bearing is composed of a body (12Cr1MoV material) * 1 pallets (12Cr1MoV, weld 10CrMo910) * 1 (25Cr2Mo1V), stud, nut and flat nut (25Cr2MoVA) combination. The pipe clamp fixed bearing is mainly used for fixing pipe under pipeline pressure, limiting the displacement of the pipeline, pipeline buffer vibration etc., are widely used in electric power, metallurgy, petroleum, chemical industry pipeline or equipment and bridges, buildings and other large equipment vibration occasions. The use of direct card pipeline, with both ends fixed by bolts and nuts. The main alloy plate welding and bending, the highest temperature can withstand 555 degrees C the header. Can be produced according to need and suitable temperature with different materials, so the product label is divided into H (12Cr1MoV, maximum heat temperature of 555 DEG C), R (20# steel, the highest heat resistance of 450 DEG C), S (Q235B, maximum heat 300 degrees C) three. Example: Dw=355.6, t=540 label C the product. For example: the label Z14.355H. label Dw=245, =540 ~ C, numbered Z1.245H.
